G12 15bb HJT Mono Crystalline Solar Cells |
HJT Solar cell is a new generation superior bifacial solar cell model made out of N-type wafer, which combines merits of crystalline silicon and thin film technology to form single composite structure. As one of most effective cell passivation technology in the market. HJT ensures solar cells deliver high efficiency and great power even in hot climate.
|
|
| |
 |
G10 182mm 18BB HJT Mono Crystalline Solar Cells |
HJT Solar cell is a new generation superior bifacial solar cell model made out of N-type wafer, which combines merits of crystalline silicon and thin film technology to form single composite structure. As one of most effective cell passivation technology in the market, HJT ensures solar cells deliver high efficiency and great power even in hot climate.
|
|
| |
 |

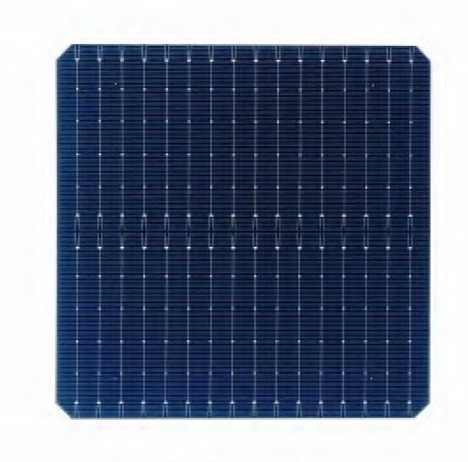

M10 182mm Topcon Solar Cells MS-SC182MTB16 |
Geometry Characteristics：
Product model:182 mono-crystalline Bifacial solar cell
Geometry：182.2mmx182.2mm±0.5mm, Φ 247.28mm±0.5mm
Cell thickness:130μm±13μm
Front design：16 busbars, 12 pads, 132 fingers, busbar width 0.036±0.02mm
Rear design：16 busbars, 12 pads, 134 fingers, busbar width 0.036±0.02mm
|
|
| |
 |
210mm 12BB Perc Mono Crystalline Solar Cells |
Model No.: MS-MSC210-12B
Macsun Solar Solar produce and supply the mono crystalline solar cells, poly crystalline solar cells, P Type Solar Cell, N type solar cell, Bifacial Solar Cell, Perc Solar Cells, 156.75mm solar cells, 157mm solar cell, 158.75mm solar cell, 166mm solar cells, 182mm solar cells, 210mm solar cell, Half cut solar cells, etc.
|
|
| |
 |
182mm P-Type Mono Bifacial Solar Cell |
Model No.: MS-MSC182-10D10B
Product Feature
High conversion efficiency ≥ 23.3% Bifaciality ≥70%
LID (Light Induced Degradation) ≤2.5%
High resistance of PID (Potential Induced Degradation) Power temperature coefficient ≤-0.35%/K
Weak light response (200W/m²) ≥95%
Lower CTM loss, better for the high efficiency module
Quality Control
Efficiency test accuracy is ±0.1%
100% automatic inspection of IV/EL/Appearance Calibration Cell soure to Fraunhofer ISE
Management System Certification
ISO 9001:2015 Quality Management System
ISO 14001:2015 Environmental Management System
ISO 45001:2018 Occupational Health and Safety Management System
|
|
| |
 |
158.75mm P-Type Mono Bifacial Solar Cell |
P-Type Mono Bifacial Cell
MS-MSC158-5D5B
Product Feature
High conversion efficiency. Upto 23.0%
Bifaciality ratio ≥70%
LID (Light Induced Degradation)≤2.5%
High resistance of PID (Potential Induced Degradation)
Power temperature coefficient<-0.38%/C
Weak light response(200W/m)>95%
Quality Control
Efficiency test accuracy is ±0.1%
100% automatic inspection of IV/EL/Appearance
Calibration Cell soure to Fraunhofer ISE
Management System Certification
ISo 9001:2015 Quality Management System
ISO 14001:2015 Environmental Management System
ISO45001:2018 Occupational Health and Safety ManagementSystem
|
|
| |
 |
166mm P-Type Mono Bifacial Solar Cell |
Model: MS-MSC166-6D9B
Product Feature
High conversion efficiency ≥ 23.0% Bifaciality ≥70%
LID (Light Induced Degradation) ≤2.5%
High resistance of PID (Potential Induced Degradation) Power temperature coefficient ≤-0.35%/K
Weak light response (200W/m²) ≥95%
Lower CTM loss, better for the high efficiency module
Quality Control
Efficiency test accuracy is ±0.1%
100% automatic inspection of IV/EL/Appearance Calibration Cell soure to Fraunhofer ISE
Management System Certification
ISO 9001:2015 Quality Management System
ISO 14001:2015 Environmental Management System
ISO 45001:2018 Occupational Health and Safety Management System
|
|
| |
 |
158.75mm P Type 5BB / 9BB Half Cell Monofacial Mono Crystalline Solar Cells |
Model: MS_MSC158_5S5B
Macsun Solar Solar produce and supply the mono crystalline solar cells, poly crystalline solar cells, P Type Solar Cell, N type solar cell, Bifacial Solar Cell, Perc Solar Cells, 156.75mm solar cells, 157mm solar cell, 158.75mm solar cell, 166mm solar cells, 182mm solar cells, 210mm solar cell, Half cut solar cells, etc.
|
|
| |
 |

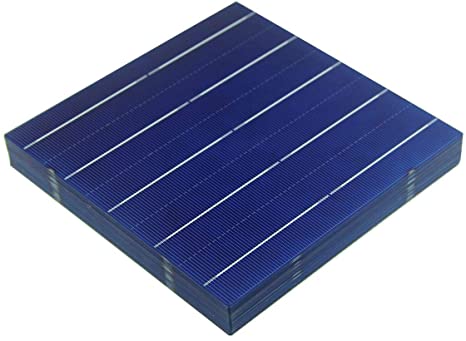

156.75mm Mono Crystalline Solar Cells |
Mono Crystalline Solar Cells
Macsun Solar imported the advanced producing lines from Germany, Italy and others, with strict quality controlling. Our R & D center dedicated to efficient, low-cost new solar cell research and development, is the first to master the international advanced photovoltaic technology -P/N-type silicon efficient solar cells, and the technology of large-scale industrialization of the team.
FEATURES：
● Long Life, High Reliability;
● Highly charged absorption capacity
● High efficiency, PID Free
|
|
| |
|
| |
