PHYSICAL PARAMETERS

Product model       MS90DG-13e 1/2 MS75DG-13e 1/2 MS78DG-13e 1/2

Color                    Black       Red(MSA10-202)     Grey(MSA10-102) Dimensions        1260*480mm

Weight                                   8.5kg

Glass _{(material/thickness)}                Tempered glass/3.2mm+3.2mm Cell        182*91mm（2*12）

Junction box                            ≥IP67

Cable type                          900mm / 4mm²

Plug connector                           MC4

Life span                               >30years

PHYSICAL PARAMETERS

Product model       MS65DG-9e 1/2 MS56DG-9e 1/2 MS58DG-9e 1/2

Color                   Black      Red(MSA10-202)  Grey(MSA10-102) Dimensions       1340*420mm

Weight                                  6kg

Glass _{(material/thickness)}            Tempered glass/3.2mm+Backplane Cell        182*91mm（3*6）

Junction box                          ≥IP67

Cable type                        500mm / 4mm² Plug connector           MC4

Life span                             >30years

PHYSICAL PARAMETERS

Product model                                         MS55DG-8e 1/2

Dimensions                                               935*944mm

Weight                                                            10.5kg

Glass _{(material/thickness)}                       Tempered glass/3.2mm+3.2mm Cell                    182*91mm

Junction box                                                  ≥IP67

Cable type                                               500mm / 4mm²

Plug connector                                                MC4

 Life span >30years

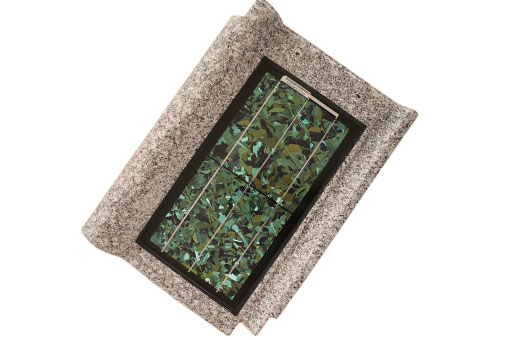

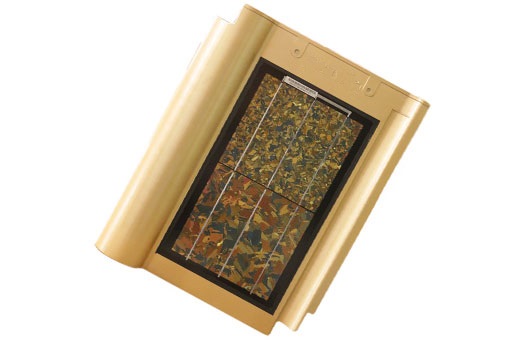

Material: 12pcs monocrystalline silicon
Product Size: 410*940mm
Effective Size:350*900mm
Thickness:13mm
Weight:6Kg±0.2Kg
Power under standard (Wp).- Pm : 30W

PHYSICAL PARAMETERS

Product model                                       MS35ST-6e

Color                                                          Black

Dimensions                                          586*400mm

Weight                                                          5kg

Glass (material/thickness)      Tempered glass/3.2mm+Tempered glass/3.2mm

Junction box                                             ≥IP67

Cable type                              300mm / 4mm² /Customizable

Plug connector                                           MC4

 Life span >30years

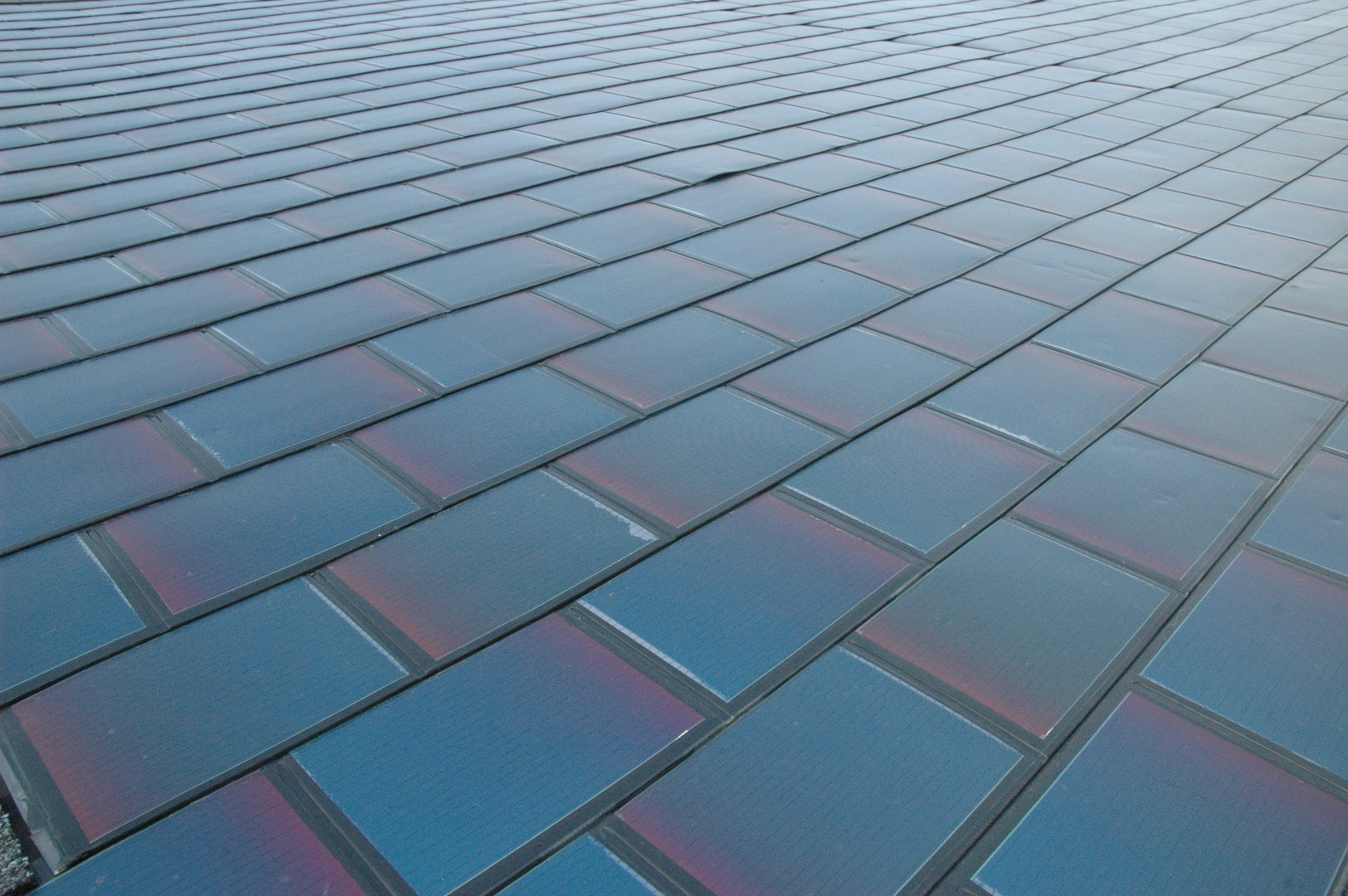

Electrical parameters

chip type：CIGS

power：30W

short-circuit current：4A

open-circuit voltage：10.6V

current at PMPP：3.5A

voltage at PMPP：8.6V
