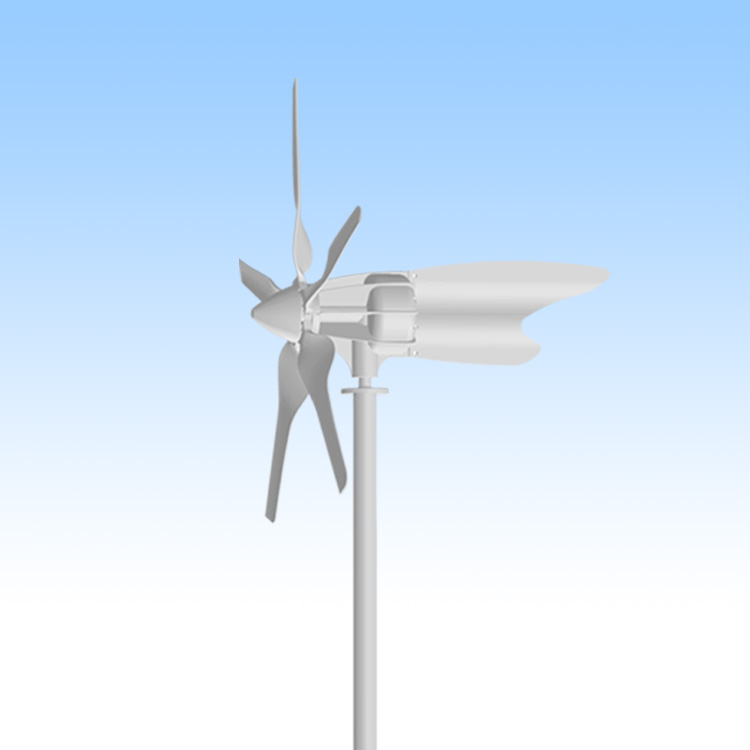

Model: 400W Horizontal Wind Turbines MS-C400
Rated power(W): 400 Rated voltage(V): 12/24 Rated current (A): 25/17 Rotor diameter(m): 1.1 Start-up wind speed (m/s):2
400W Horizontal Wind Turbines MS-C400
Technical Parameter:
MODEL:MS-C400
Max power(W): 400
Rated voltage(V): 12/24
Rated current(A): 25/17
Rated RPM: 800
Blades No.(pcs): 5
Rotor diameter(m): 1.1
Blade material: Nylon
Start-up wind speed(m/s): 2
Rated wind speed(m/s): 15
Security wind speed(m/s): 45
Slip ring type: sealed and water proof
Weight(kgs): 14
Life time(years): 25
Packing form: carton

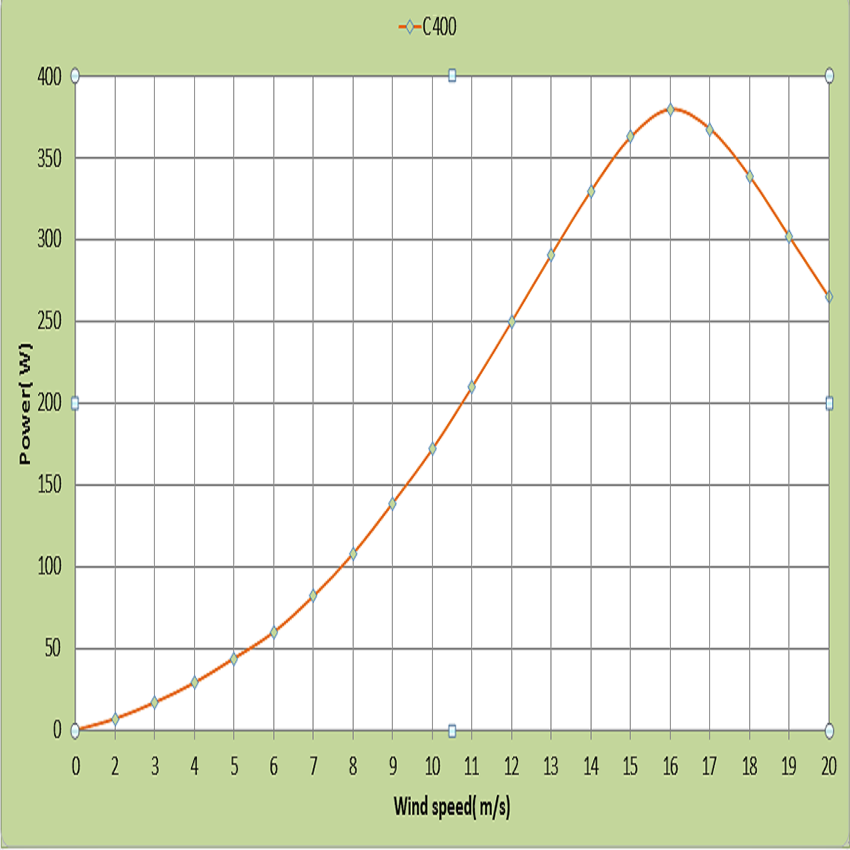

2. Power curve:

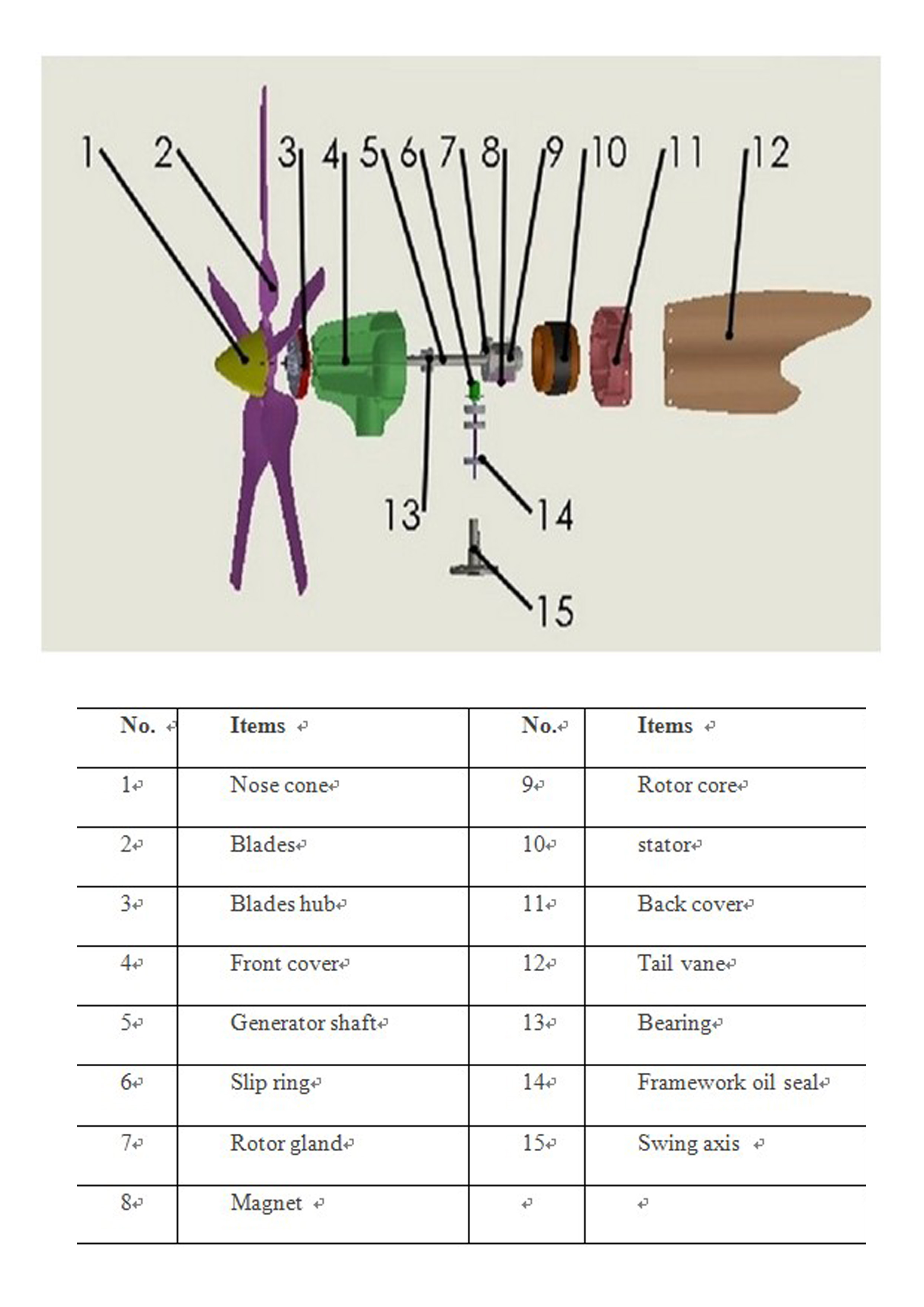

3. Explosive view:
