5000W Horizontal Wind Turbines MS-WT5000

1. Product features:

•Excellent power output performance during the common wind speed between 5m/s and 9m/s

•High efficient synchronized PMG generator with low starting torque

•Lower RPM rotational speed avoid the risk of over speed malfunction and bring lower noise emission

•Dual brake protection systems as reliable passive self-furling and electromagnetic brake

•Equipped with high quality NSK brand sealed bearing

•Long lifespan design by using superior aluminum alloy and cast steel in accurate die-casting tech and the anti-corrosion treatment for all kinds of circumstances.

Technical Specification:

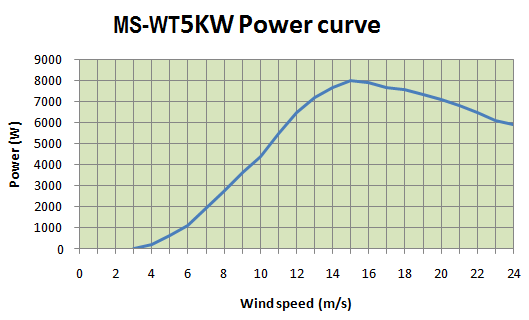

2. Power Curve:

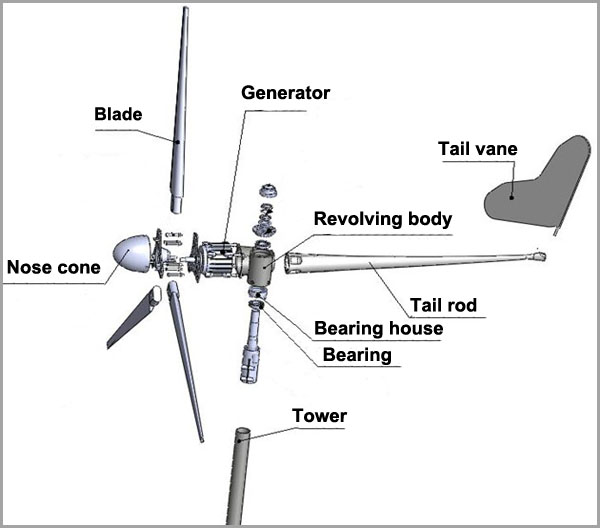

3.Structure

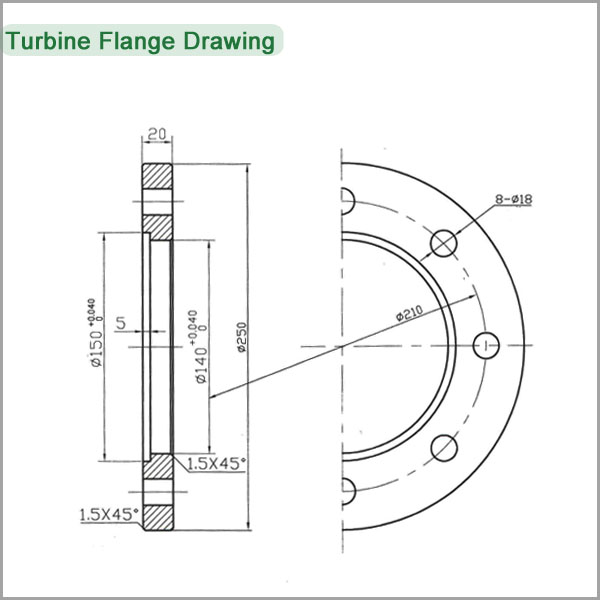

4.Turbine Flange Drawing
