Introduction:

This is a MPPT (maximum Power Point Tracking) smart solar controller, with charging and discharging function, increasing 30%~60% efficiency than traditional PWM controller. It has automatic recognition function, three Stages charging function, also supports many kinds of battery charging and discharging, RS232 communication etc, It’s our company’s MPPT solar  controller e-SMART series.

Remarks:DC12V/24V/48V battery system automatic recognised.

Features:

1. MPPT charging mode, peak efficiency up to 99%, saving 30%~60% solar panel than traditional PWM controller.

2. DC12V/24V/48V battery system automatic recognition, users would like to use in different system conveniently.

3. DC12V/24V/48V system, maximum PV input voltage up to DC100V.

4. Charge type: three stages charge fast charge(MPPT), constant voltage,

floating charge, protected our battery, lead to a long use age.

5. Discharge type owns always on pattern and always off pattern, it also has PV voltage solar controlling switch pattern.

6. Clients can auto select any one in the 4 kinds of commonly used batteries, Sealed lead acid, vented, Gel, NiCd and custom other batteries.

7. Digital tube display controller battery voltage and charging current,upper computer display various parameters, such as model, PV input voltage, battery types, battery voltage, charging current, charging power, working condition etc.

8. RS232 communication, and that providing communication protocol, it’s convenient for customer’s integration management.

9. This controller could be paralleled infinitely.

10. CE, RoHS Certifications approved; cooperating with clients through the other certifications.

11. 2 years warranty; 3~10 years extended technical service.

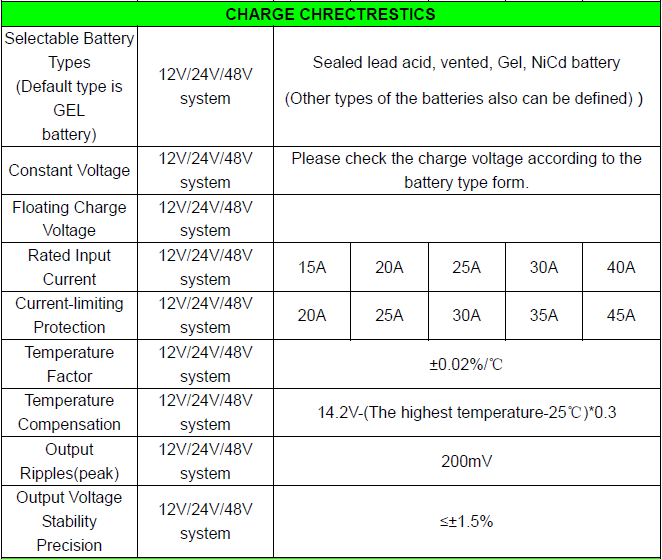

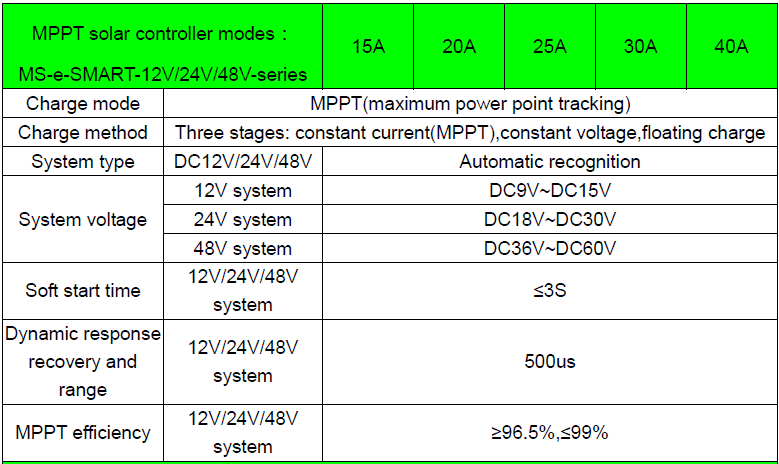

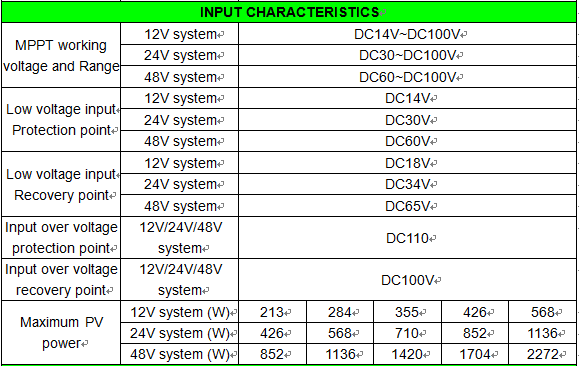

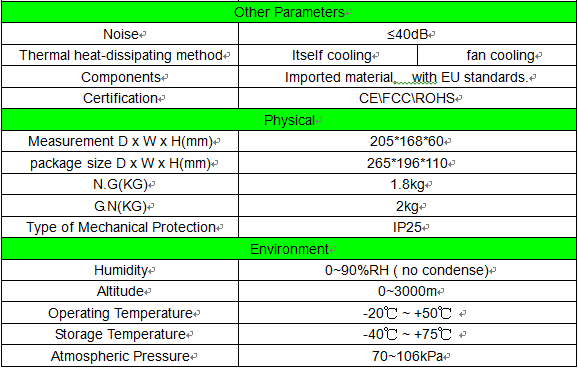

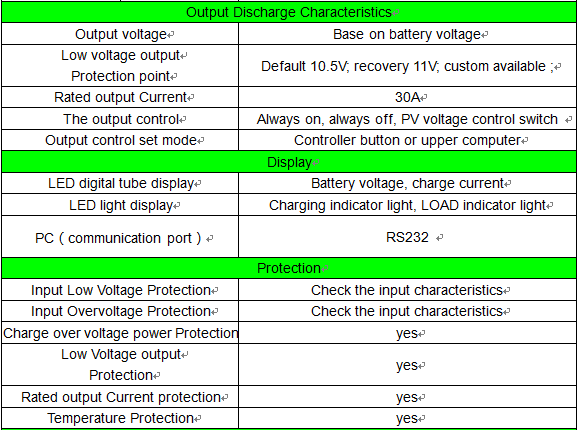

Parameters:

Remarks：

• The specification is only for reference. Subject to change without prior notice

• We provide OEM and ODM service. The 36V/72V/96V model also can be custom made for you.
