  Product Name: Azimuth Tracking System MS-PV-SAT33-L
Download:   Right click the mouse "target save as" Download
Details

Azimuth Tracking System

Tracker Profile



The axis of rotation for vertical single axis trackers is vertical with respect to the ground. These trackers rotate from East to West over the course of the day. Such trackers are more effective at high latitudes than are horizontal axis trackers. Field layouts must consider shading to avoid unnecessary energy losses and to optimize land utilization. Also optimization for dense packing is limited due to the nature of the shading over the course of a year. Vertical single axis trackers typically have the face of the module oriented at an angle with respect to the axis of rotation. As a module tracks, it sweeps a cone that is rotationally symmetric around the axis of rotation.



Product Characteristics:

  • More efficient at higher latitudes.
  • Automatic tracking, with azimuth tracking range of -120°~120° ;
  • Manual control mode, can adjust the angle of tracking artificially;
  • Wind resistance design, with night reposition function;
  • High accuracy: improved stability and accuracy by means of system optimization, structure innovation, control system innovation and software innovation.
  • Low cost: reduced cost by implementing an independently designed SCM;
  • Intelligent control, big data applications: our products have an obvious comparative advantage in technology, cost and safety. Additional functions such as automatic reporting technology, mobile APP control, profit calculation and etc. can be customized.

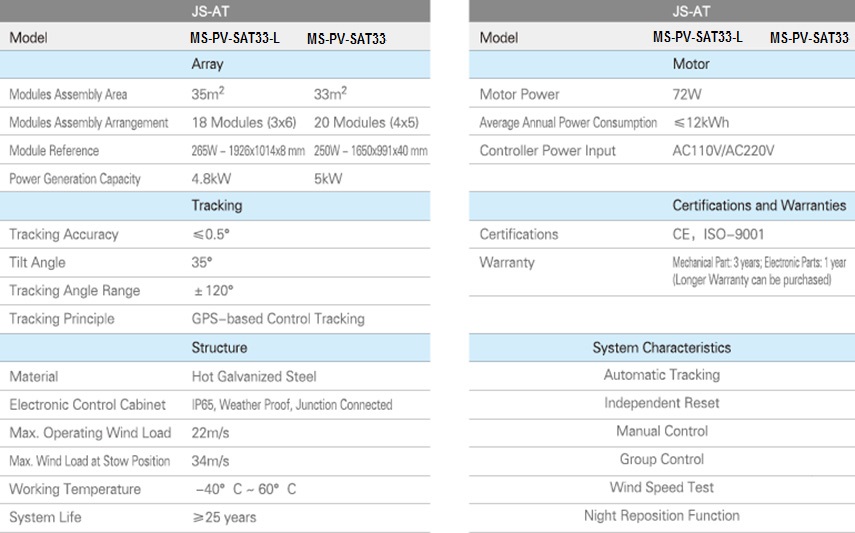

Product Specifications
