		Product Name： 90w solar street light---Single Lamp MS-SL90
		1) Poly Solar panel---230W2 2) LED light---90W/24V 3) Lead-acid battery---120AH/12V2 4) Controller---20A/24V 5) Pole & lamp arm &bracket of solar panel &battery box, underground fittings, wires and nuts---11.0 m


		Download： Right click the mouse "target save as" Download

Details

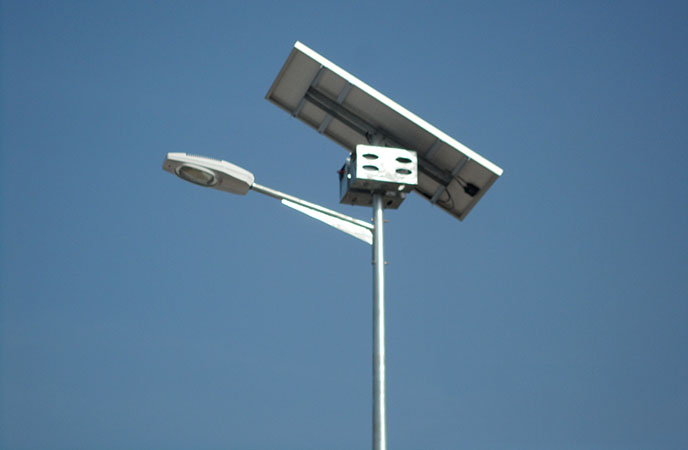

90w solar street light---Single Lamp MS-SL90

Suitable for: United States, Japan, Turkey, Italy etc....

Main Parts	Specification
1) Poly Solar panel	230W*2
2) LED light	90W/24V
3) Lead-acid battery	120AH/12V*2
4) Controller	20A/24V
5) Pole & lamp arm &bracket of solar panel &battery box, underground fittings, wires and nuts	11.0 m

Special Notes and Instructions

Minimum order quantity: 1sets

Delivery time: within 15 working days after received the deposit.

Working time: 11hours/day, can keep 0 rainy days

Macsun Solar Controller 6 Min Installation Mobile App Control system

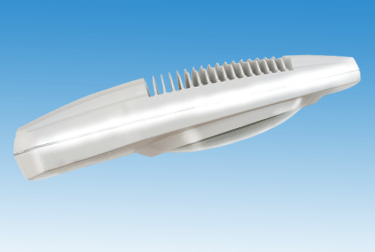

Solar LED Street Lamp-90W:

	MODEL	MS-SL90
	LED power	90W
	Working Voltage	DC24V
	Power efficiency	＞0.9
	Power factor	＞0.98
	LED luminous efficacy of light source	100lm/W
	Lamp efficiency	＞90%
	Ra-color rendering index	Ra＞80
	CCT-correlated color temperature	2700K～7000K
	Working condition	-40℃～55℃
	Protection grade	IP65
	Lifespan	＞50000H
	Weight	9.56KG

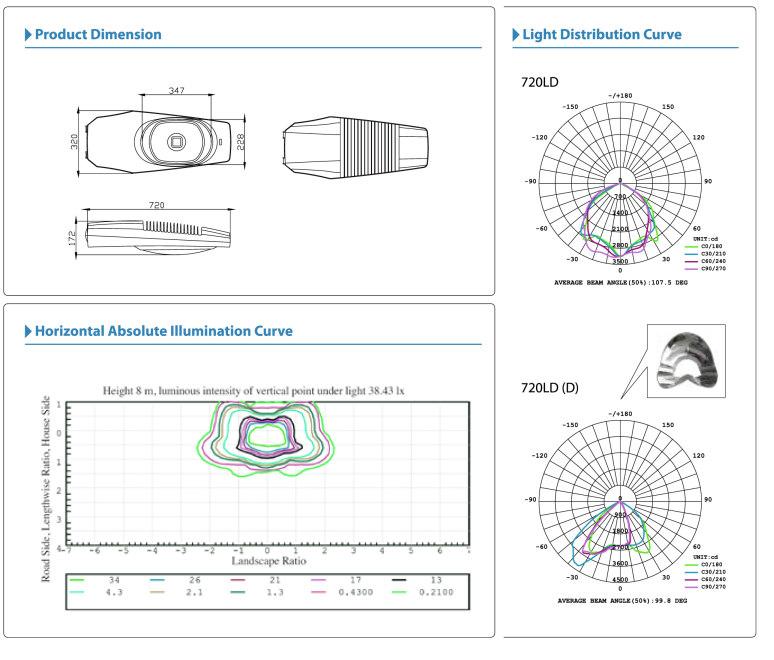

	Outline size	720×320×172mm
