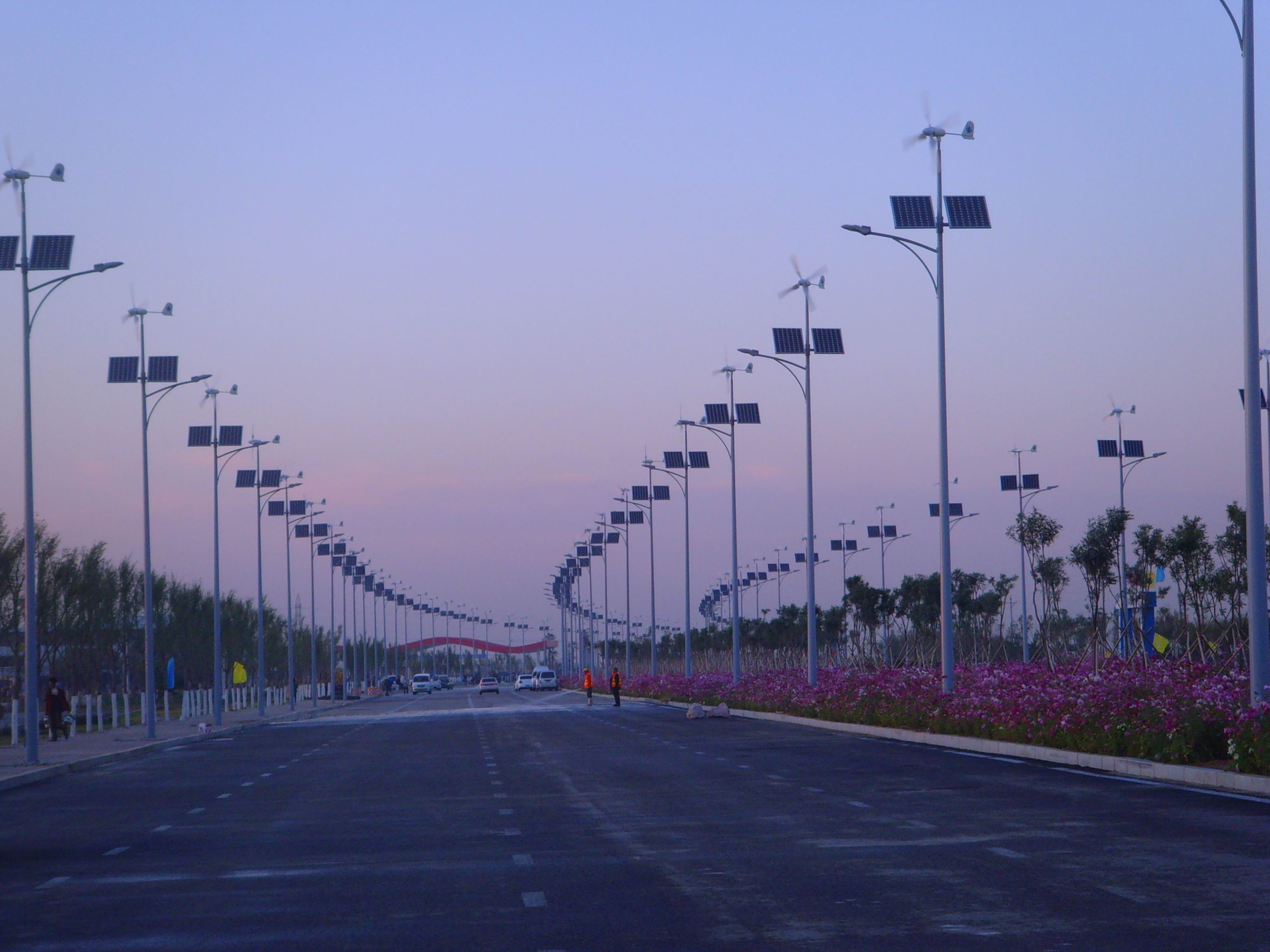

12M 120w solar wind hybrid street light
The weakness for solar is cloudy or rainy weather, which would decrease electricity generation by sun. The loss in power would affect battery storage, the worst results is power supply will cut off due to shortage of charging. Wind turbine will be a best compensation for area full of wind sources, it would provide sufficient charge plus power from solar panel for solar street lights. But the disadvantage is electricity generation of wind turbine is subjected to wind speed, for those area with less wind sources, wind and solar solution is not recommended.
Applications：
Street Lighting, Roadway Lighting, Pathway Lighting, Ramp Lighting, Sidewalk Lighting, Private Road Lighting, Farm & Ranch Lighting, Wildlife Area Lighting, Perimeter Security Lighting, Park Lighting, Gate Lighting, Yard Lighting, Fence Lighting, Campus Lighting, Boat Dock Lighting, Remote Area Lighting, Military Base Lighting, Jogging and Bike Path Lighting
General Specifications:
|
LED Lamp
|
5~200W (can be customized)
|
|
Lighting Pole
|
2~12Meters(can be customized)
|
|
Working Time
|
can be customized
|
|
Rainy Days Backup
|
can be customized
|
|
Working Condition
|
-30- 70℃ Working Temperature, >160km/h Wind Resistance
|
|
Certifications
|
CE,GMC,TUV,CCC, ISO9001,SGS,ROHS,IEC61215,SASO,BV
|
We recommend wind & solar hybrid street light in places with abundant wind energy
1. Wind Turbines:
|
Max. Power Output
|
200W
|
400W
|
|
Start-up Wind Speed
|
2.1 m/s (4.7 mph)
|
2.1 m/s (4.7 mph)
|
|
Rated Power
|
150W at 12.5 m/s (27.96 mph)
|
250W at 12.5 m/s (27.96 mph)
|
|
Voltage
|
12/ 24 V
|
12/ 24 V
|
|
Rotor Diameter
|
2.953 feet (0.92 m)
|
3.675 feet (1.12 m)
|
|
Body
|
Die cast aluminum
|
Die cast aluminum
|
|
Blades
|
6-Carbon reinforced fiberglass
|
6-Carbon reinforced fiberglass
|
|
Survival Wind Speed
|
40 m/s (90 mph)
|
40 m/s (90 mph)
|
|
Mount
|
1.89-2.01 inch (48-51mm) O.D. pipe
|
1.89-2.01 inch (48-51mm) O.D. pipe
|
|
Net weight
|
17.64 lb (8 kg)
|
22.05 lb (10 kg)
|
|
Packaging Size
|
2 cartons: 13*13*9.85 inch, 18.52*11.82*3.55 inch
|
2 cartons: 13*13*9.85 inch, 22.07*13*3.55 inch
|
|
Warranty
|
Two-year limited warranty
|
Two-year limited warranty
|
2. A GRADE high efficient solar panel
Because of anti-reflective hydrophobic layer, which is with higher light absorption and minimal surface dust, and our solar panel is with higher conversion rate.
Mono: 18% conversion rate, Poly: 17% conversion rate, 25 years power output warranty.
3. 100,0000 HOURS LIFESPAN LED LAMP with First Class LED Chips
American brand LEDs: Epistar/ BRIDGELUX/CREE for our solar street lighting products
Long life time: more than 100,000 hours long life time
Color temperature: 3000K-6500K ultra bright LEDs that last up to 50,000 hours
Illumination: 100-130lumen/W
Light fixture: We recommend different light fixtures according to different applications and working environment.
4. Hot dip galvanized Q235 steel pole
Hot dip galvanized together with powder spray, realizing antirust and anticorrosion.
5. Detachable Solar Panel Bracket
Material: Q235 Steel
Features: Hot dip galvanized together with powder spray, realizing antirust and anticorrosion
Detachable design, saving transportation cost and realizing easy installation on site
6. Detachable Foundation Kit
Material: Q235 Steel
Features: Hot dip galvanized together with powder spray, realizing antirust and anticorrosion
Detachable design, saving transportation cost and realizing easy installation on site
7. Intelligent Controller
Combination: It combines the controller and LED driver as one, easy to maintain.
IP67 Protection Grade: 100% protected against humidity and works reliably under all climate conditions.
Protection Functions: Short-circuit Protection, Reverse Discharging Protection, Polarity Protection, Low Voltage load cut-off protection, Over-charge Protection.
Vdetector Technology: By calculating the ratio between stored electricity and output electricity, the controller automatically adjusts the working current of LED lamp accordingly so as to prolong the working time of the solar street light.
Easy Maintenance with wireless Remote Controller：We can use the remote controller to change the Working time and output power of the solar street lighting system.
8. UL Listed Maintenance Free GEL Battery
|
Type
|
GEL Free Maintenance Battery
|
|
Rated Working Voltage
|
12V
|
|
Interior Resistance (Completely Charge)
|
5.1mΩ (25℃)
|
|
Self-Discharge(25℃)
|
<2%/ month(20℃)
|
|
Case Material
|
Reinforced ABS polypropylene
|
|
Using Temperature
|
-40℃～60℃
|
|
Cycle life
Capacity Affected by Temperature
Life Time
|
80%DOD 600 cycles, 25%DOD 2000 cycles (25℃)
105 % @ 40℃, 85 % @ 0℃, 60 % @ -20℃
5~7 years
|
9. Mental Battery Box
Material: ABS Engineering Plastic
Features: Die-casting forming, fully sealed waterproof, good heat protection
Tests:
We have a strict quality control system; every single set of solar street light has to go through 48 tests before leaving factory.
Customized Lighting Solutions
A wide variety of configurations and designs are available to meet your specific demand.
Specifications below are for your reference only. The system will be configured according to climatic conditions of the installation site together with your specific requirements.
For Customized Solar Street Lighting Solutions, please click inquiry.
Featured Project Cases
So far Macsun Solar has sold over 250,000 sets of solar street lights, among which 30,000 sets are for exportation.
During 2016, we have sold 70,000 sets altogether, among which 10,000 have been exported.
With reliable quality and competitive price, MACSUN SOLAR has won great market in America, Japan, EU, middle-east, South America and Africa. MACSUN SOLAR has built partnership with many famous companies like Marriott Hotel, Shangri-La Hotel, Huawei, ZTE, China Railway Construction Company, Green Solar Energy (USA) and etc.
For typical project cases, please click Typical Project Cases.
|
