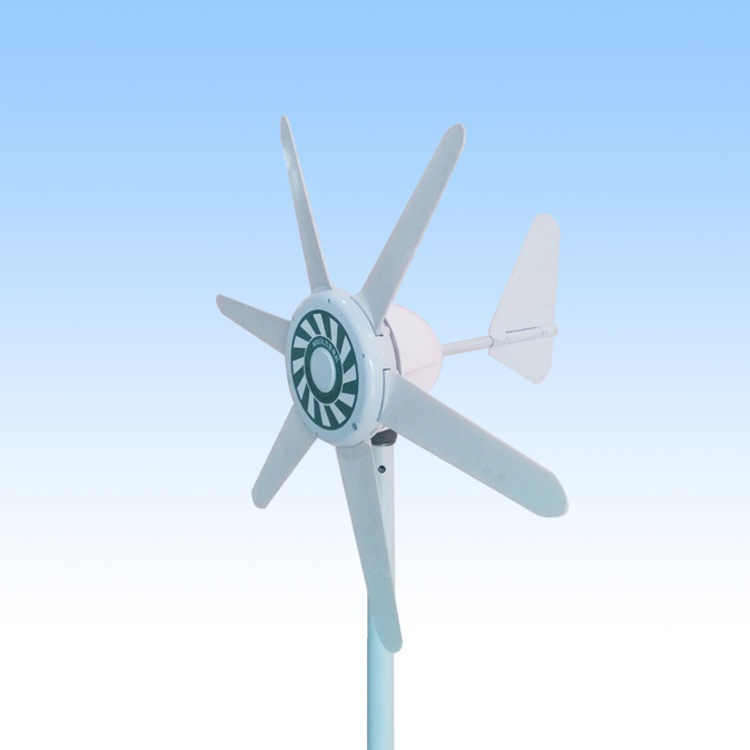

300W Horizontal Wind Turbines MS-M300

1. Technical Parameter:

Model:  M300

Rated Voltage(DCV):  12/24

Rated output(W):  90

Start-up wind speed(m/s):  1

Survival wind speed(m/s):  35

Rotor diameter(m):  0.82

Blades No.(pcs):  6

Blade material:   Reinforced fiber glass

Nacelle material:  Aluminum

Controller:  Built-in

Protection mode:  Short circuit

Lifetime(years):  25

Packing form:  carton

Protection grade:  IP65

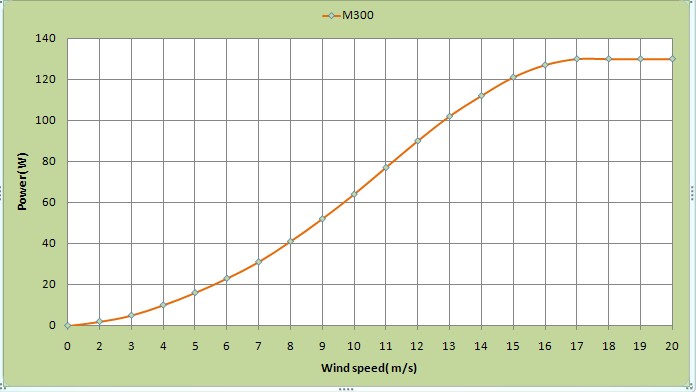

2. Power Curve:

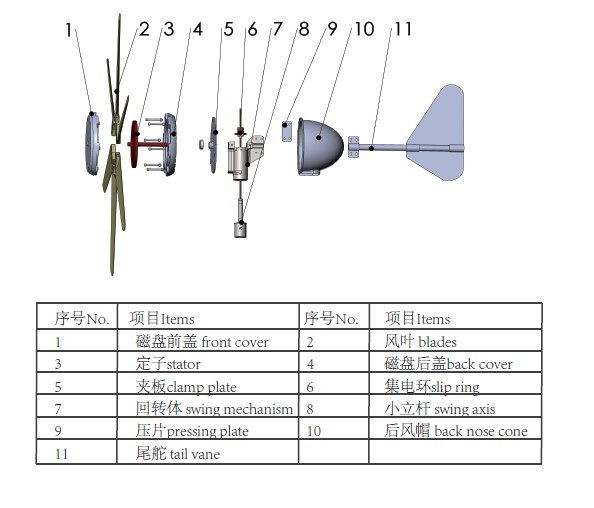

3. Structure:

4. Special note:

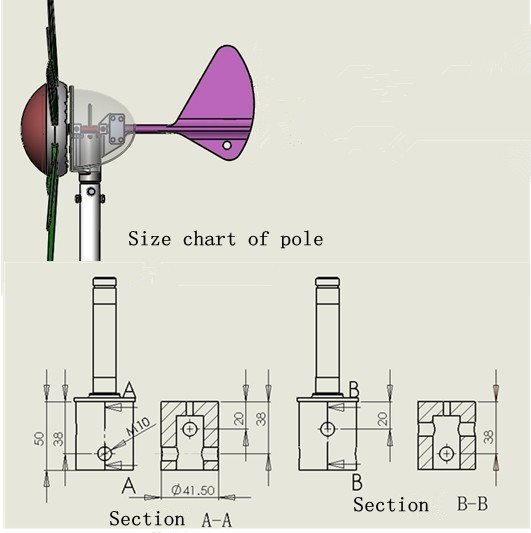

Connection diagram between wind generator and pole

1.Connects mall pole and pipe(48*2.5mm diameter).

2.Drill 2pcs of symmetrical screw holes(12mm diameter) above a distance of 20mm at the upper end of pipe.

3.Clockwise 90°in the hole above the distance of 20mm, and drill2pcs of symmetrical screw holes(12mmdiameter) above a distance of 38mm at the upper end of pipe.

4.Fasten the pipe between wind generator and tower with 4pcs screws(M10).

Note: The joints between wind generator and pole need a torque of 80nm. Fix with locking grain rubber in suitable condition.
