  Product Name: All-in-one solar street light MS-SLA60
Download:   Right click the mouse "target save as" Download

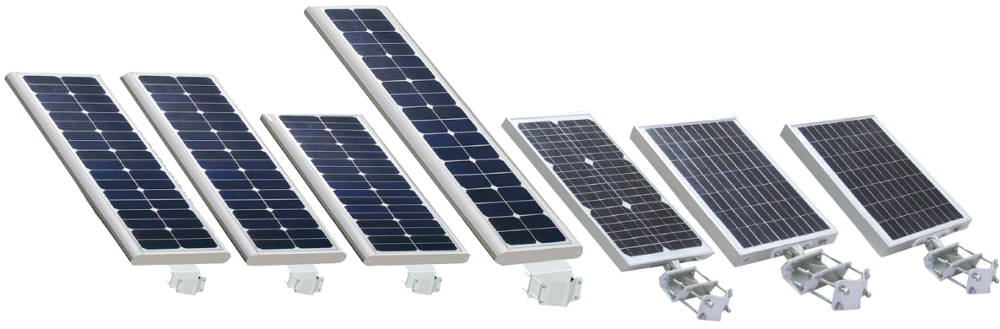

All-in-one solar street light

Features & Benefits:


       1. Easy installation. No expensive underground wiring costs.


       2. New generationLife-P04 lithium-ion battery with up to 5 years effective life and longer autonomy times.

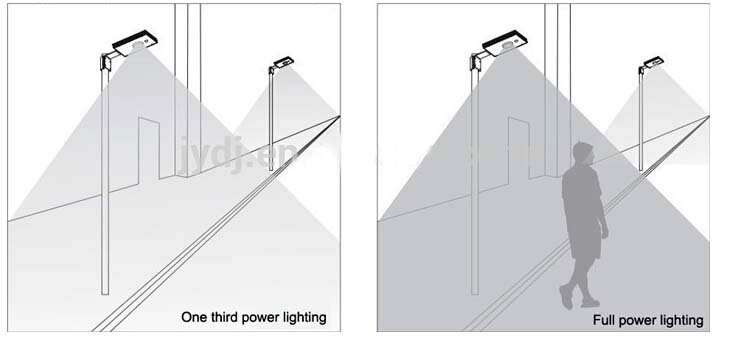

       3. Motion Sensor's automatically regulates light output to save battery power, change from dim mode (1/3) to full brightness upon motion detection


       4. IP65 Rated for all types of applications including

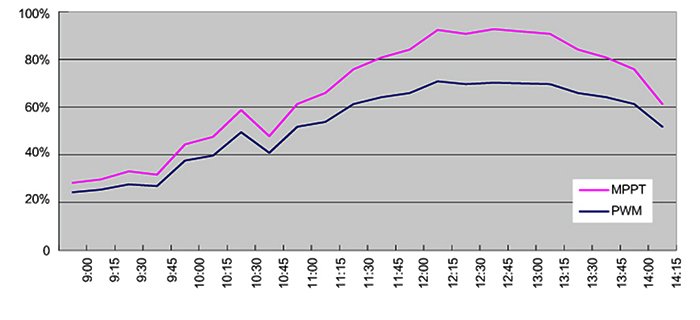

MPPT controller and PWM controller Charging efficiency comparison:

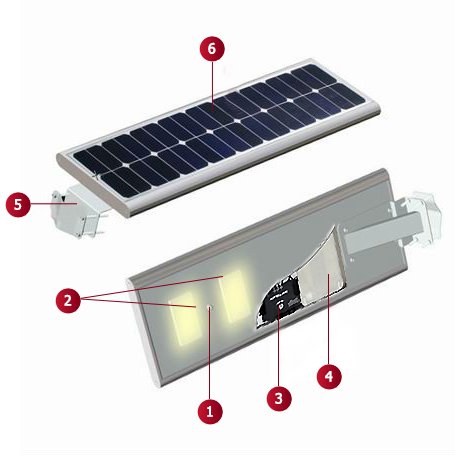

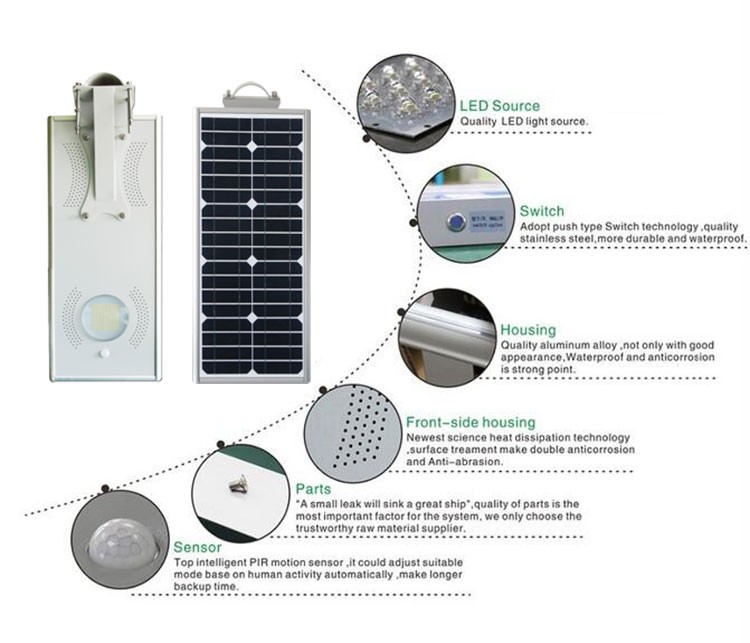

Smart eye’s motion sensor
built-impassive Infrared Motion Sensor automatically regulates light output

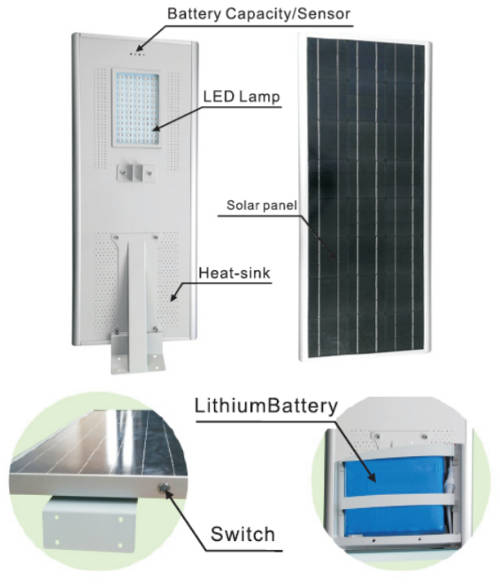

 LED Lamp

Choice of either ‘Symmetrical’ or ‘Asymmetrical’ lighting distribution

 Power Management Controller

Regulates and protects power to lamp and battery packs


Lithium iron phosphate(LiFePO4) New generation ‘Lithium iron phosphate’ (LFP) batteries offers 3 times more storage and power capacity versus traditional Lead Acid batteries

 Adjustable Bracket

3position adjustment to maximize solar exposure

 Solar Module

Mono Crystalline Silicon P.V Module, highly efficient and tolerant to heat providing more output on a smaller footprint

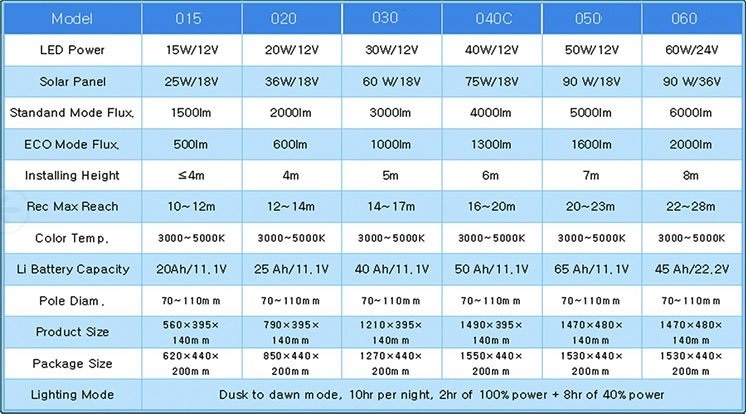

Technical Specification:

Model No.: MS-SLA15~MS-SLA60
