Main Parts

Specification

1) Poly Solar panel

100W/12V

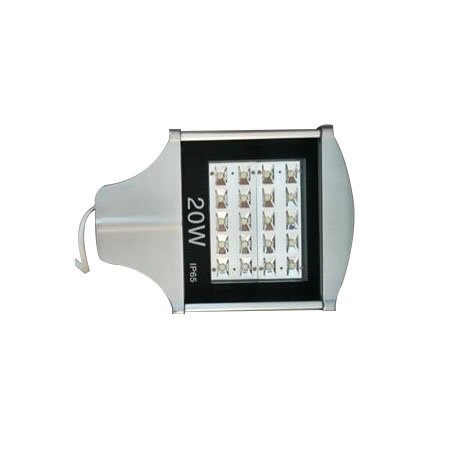

2) LED light

20W/12V

3) Lead-acid battery

50AH/12V

4) Controller

10A/12V

5) Pole & lamp arm &bracket of solar panel &battery box, Underground fittings, wires and nuts

4.0 m

MODEL

MS-SL20

LED power

20W

Working Voltage

DC12/24 V

Source Efficiency

＞0.9

Power Factor

＞0.95

Luminous Efficacy

80lm/W

Lamp Efficiency

＞90%

Ra-color Rendering index

Ra＞65

CCT-correlated Color Temperature

4000K～6000K

Working Tempreture

-40℃～45℃

Protection  Grade

IP65

Lifespan

＞50000H

Weight

2.465kg

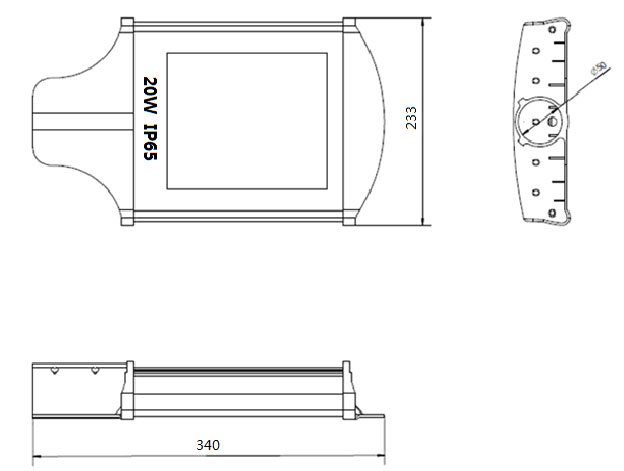

Dimension

340×233×60mm
