		Product Name： 120W Solar Street Light MS-SL120
		1. Solar module power: 480Wp 2. Working voltage: 36VDC 3. Storage battery: Highly reliable and maintenance free lead-acid battery, capacity 420AH 4. Light source: 120W LED lamp ，120W on ground brightness 25lux 5. Control system: Solar light special micro computer intelligent controller


		Download： Right click the mouse "target save as" Download

Details

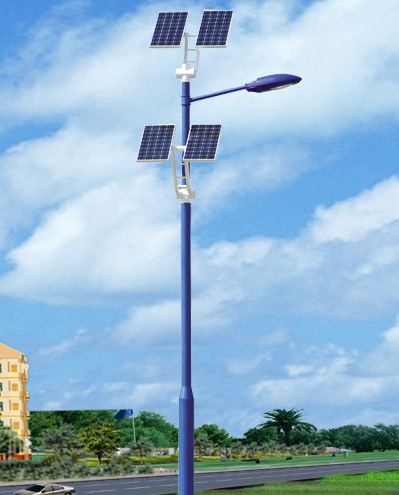

120W Solar Street Light MS-SL120

Product Description：MS-SL120
1. Solar module power: 480Wp
2. Working voltage: 36VDC
3. Storage battery: Highly reliable and maintenance free lead-acid battery, capacity 420AH
4. Light source: 120W LED lamp ，120W on ground brightness 25lux
5. Control system: Solar light special micro computer intelligent controller
6. Working temper: -30 to 70 degrees
7. Lighting time: 10 hours a day
8. Pole height: 11m
9. Continuously rainy: More than 7 days
10. Solar panel life panel: 25 years
11. LED lamps life spam: 50，000 Hrs

Macsun Solar Controller 6 Min Installation Mobile App Control system

Solar LED Street Lamp-120W:

	MODEL	MS-SL120
	LED power	120W
	Working Voltage	DC24V
	Power efficiency	＞0.9
	Power factor	＞0.98
	LED luminous efficacy of light source	100lm/W
	Lamp efficiency	＞90%
	Ra-color rendering index	Ra＞80
	CCT-correlated color temperature	2700K～7000K
	Working condition	-40℃～55℃
	Protection grade	IP65
	Lifespan	＞50000H
	Weight	9.56KG

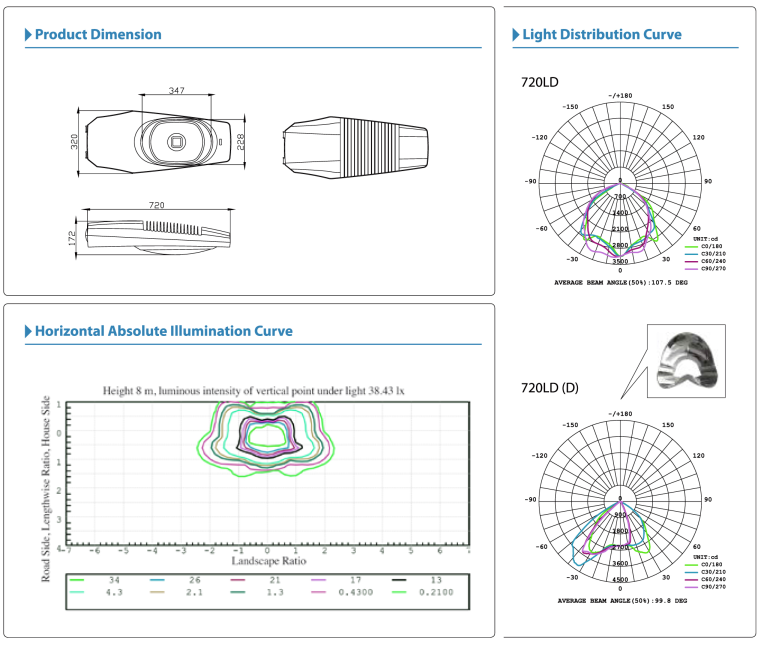

	Outline size	720×320×172mm
