Solar Tie Solar Cental Inverters MS-SCP500KW

High performance, large volume central inverter, designed for utility-grade solar plant, with 315V output voltage, it is used with step up transformer to build large scale MV/HV solar plant.

Grid Tie Solar Microinverter


Communication Wireless
Design Life >25 Years
1 Volatage and frequency ranges can be extended beyond nominal if required by the utility

Solar String Combiners & Smart PV Convergence Box
  • PV convergence boxes are used to connect PV arrays and inverters for lightning protection and over current protection. It is also used to monitor single string current, voltage, and lightning protection device status in PV arrays as well as circuit breaker status.
  • Special electrical design and component selection can ensure long time reliable operation. Large screen cabinets developed with unique processes by our own plant ensure reliable and durable outdoor use.
  • Additionally, they are easy to maintain with easy wiring on site thanks to their safe, simple and well-arranged internal wiring.
Lithium Batteries LiFePO4 50175130 80Ah 4S1P with PCM 80
This Product Specification describes the technique requirements, test procedure and precaution notes of prismatic type LiFePO4 Battery to be supplied to customer by Macsun Solar Energy Technology Co.,Limited.
1、 Production description
a) Name:LiFePO4 Battery
b) Model:50175130/4S1P/80Ah/12.8V
c) Cell:50175130/80Ah/3.2V
d) Warranty period :3 years
e) Structure Drawing: (L:192±5* W:185±5 * H:136±5mm)
Macsun Solar HCPV Solar Module MS-HCPV120W
Concentrated Photovoltaic (CPV) Solar Modules MS-CPV360W

Features and Benefits:
Macsun Solar CPV technology combines GaAS multi-junction solar cells into a high concentration flat Fresnel lens design. At over 1000 suns, the module achieves greater than 27% conversion efficiency using a 50cm depth, establishing a new IEC benchmark for CPV systems.

More Power:
1, Enabled by advanced triple junction cells self-manufactured
2, Less than half the degradation in power output due to temperature of silicon panels
3, Employs refractive, non-imaging optical lens and multilevel concentrator parts which avoids chromatic aberration

Reliable & Robust Design:
1, Proven materials, partially tempered front glass and a sturdy anodized frame allowed module to operate reliably in multi-array mounting configurations
2, Enclosed modular assembly –no exposed cables and circuits avoids fire hazards
3, No moving parts inside –avoids mechanical failure and keeps Transportation Security
4, Glass-based concentrator immune to UV degradation

Low Cost:
1, More power per module means fewer modules per installment
2, Macsun Solar's CPV systems are designed to be used in conjunction with Macsun Solar's high precision dual axis trackers in order to optimize system performance.

Macsun Solar HCPV Solar Module MS-CPV-1000X

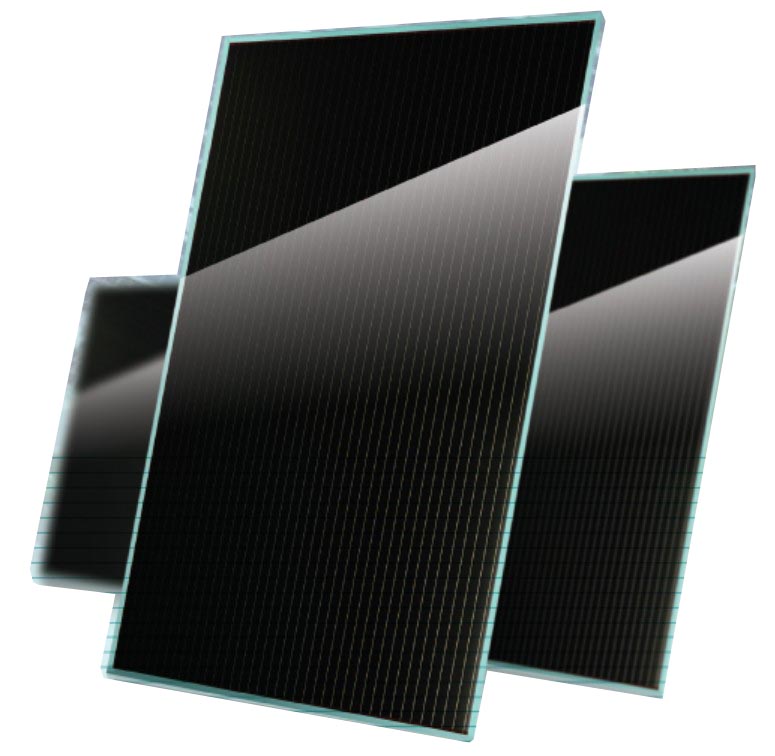

Thin Film Solar Modules

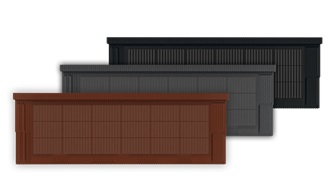

90W Mono Crystalline Solar Tiles


Product model       MS90DG-13e 1/2 MS75DG-13e 1/2 MS78DG-13e 1/2

Color                    Black       Red(MSA10-202)     Grey(MSA10-102) Dimensions        1260*480mm

Weight                                   8.5kg

Glass (material/thickness)                Tempered glass/3.2mm+3.2mm Cell        182*91mm(2*12)

Junction box                            ≥IP67

Cable type                          900mm / 4mm²

Plug connector                           MC4

Life span                               >30years

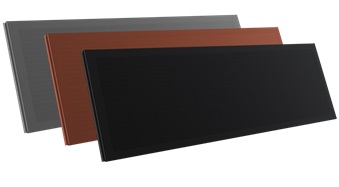

65W Mono Crystalline Solar Tiles


Product model       MS65DG-9e 1/2 MS56DG-9e 1/2 MS58DG-9e 1/2

Color                   Black      Red(MSA10-202)  Grey(MSA10-102) Dimensions       1340*420mm

Weight                                  6kg

Glass (material/thickness)            Tempered glass/3.2mm+Backplane Cell        182*91mm(3*6)

Junction box                          ≥IP67

Cable type                        500mm / 4mm² Plug connector           MC4

Life span                             >30years
